Neodymium Cup/Pot Magnets
Neodymium Pot Magnets
Neodymium (NdFeB ) Pot MagnetsNdFeB Pot Magnets are best for small sized magnetic products with maximum pull strength (ideally when in direct contact with ferromagnetic e.g. mild steel surfaces). The actual pull force achieved is dependent on the surface that is being clamped onto (material type, thickness, flatness, friction levels, etc), its quality (e.g. rust free), its size (thickness plus total surface area), etc.
We offer Pot Magnets in a silver (chrome, zinc or nickel) finish, a white paint finish, a red paint finish, black rubber coated finish and ferritic stainless steel finish, etc.
We currently offer four types of Pot Magnet that contain NdFeB magnets:
● NdFeB Flat Pot Magnet
● ● NdFeB Deep Pot Magnet
● NdFeB Pot Magnet with Male Threaded (External Thread)
● NdFeB Pot Magnet with Female Threaded (Internal Thread)
● NdFeB Pot Magnet with Eyelet
● NdFeB Pot Magnet with Hook
● NdFeB Pot Magnet with Countersunk Mounting (Shallow Pot)
● NdFeB Pot Magnet with Through Hole Mounting
Application:
There are many applications for Neodymium Pot Magnets, mainly in applications where a strong clamping force is required. Applications include Point of Sale, window dressing, door / cupboard and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, etc.
Neodymium Pot Magnets. Widely used in assorb! The following items are the relative products of the NdFeB Pot Magnets, you can quickly find the NdFeB Pot Magnets through the list.
Are often used as tools for various activities in workshops and in industry. They can be used for holding workpieces whilst welding, cutting, milling or drilling etc. Because of the lack of moving parts and the robust construction of pot magnets, the life is unlimited and no maintenance is required. Just keeping the pole surface clean guarantee reliable operation and a long life.

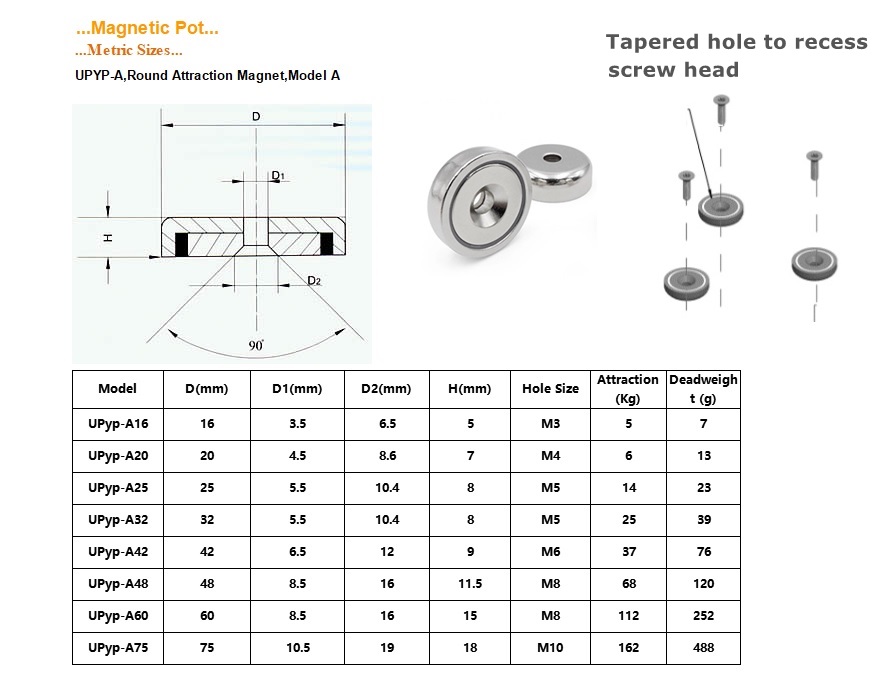

...UPYP-A series...
NdFeB Cup Countersunk Magnet ,Sintered Neodymium Pot Countersunk Magnet, Shallow Pot Counterbore Magnets, Magnetic Fixture Holder, Rare Earth Hanging Mounting Holding Clamping System Permanent Magnet, NdFeB Cup Magnets with Countersink Hole, screw-on Countersunk Ring Magnet China Supplier.
Part No.: UPyp-A series
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Ring / Disc Magnet with Countersunk hole (90° sunken hole)
Material: Housing steel and Magnetic core sintered neodymium countersunk magnet.
Temperature range: max. 80°C.
Neodymium pot magnets are made of a powerful Neodymium magnet sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them an incredible hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface.
In these products, our neodymium magnets are sunk in a steel pot and have a centered borehole and countersink. Hence, they can be screwed into the wall or ceiling with an appropriate countersunk screw and you can attach various objects. Besides countersunk pot magnets, you can also find pot magnets with cylindrical borehole as well as screw-on magnets without pot in our assortment.Firm bolting with subsurface.Use as holding, mounting or cup magnet
Especially suitable for structural solutions in metal, plant or booth construction as well as in the lighting industry.
Mounting Magnets – Cup & Pot Magnets, counterbore neodymium pot magnet, round base magnet
High quality pot/cup magnet assemblies made with super strong rare earth neodymium magnets and ceramic magnets for Home or Industrial uses.
Pot Magnet Size:
see the chart as belows.:

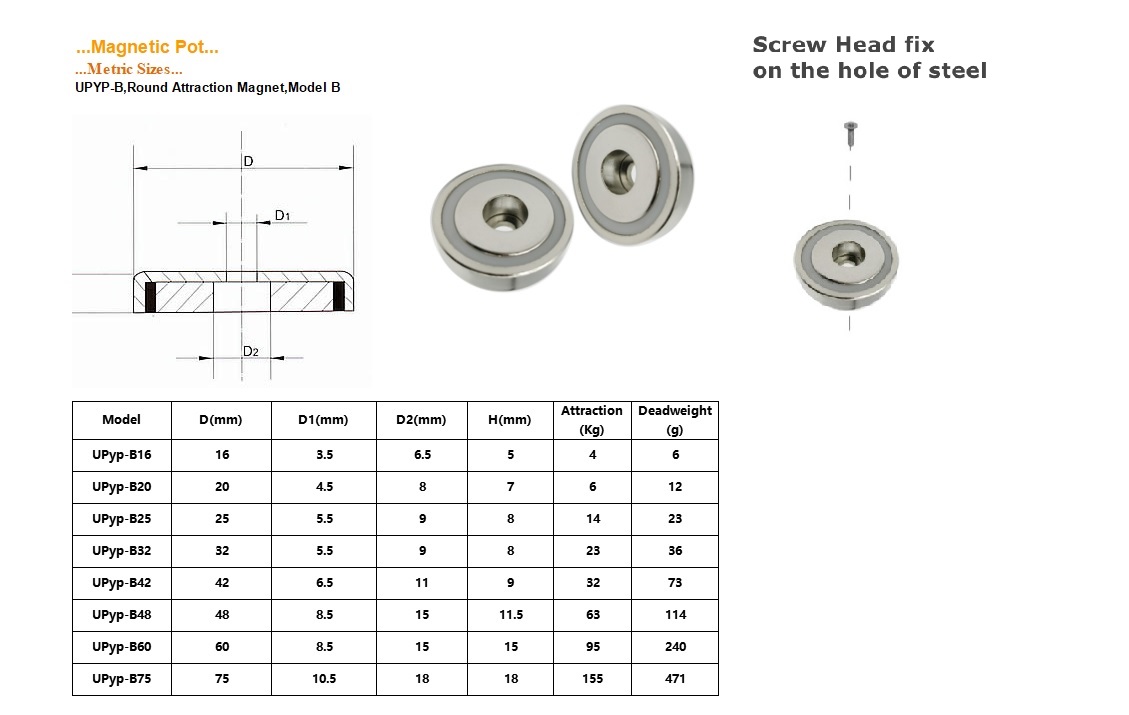

...UPYP-B series...
NdFeB Pot Magnets Through Hole , Magnetic Pot, Through Hole NdFeB Pot Magnet, Powerful round base magnets, Cap Magnet, Cylindrical hole pot magnet, Rare Earth Hanging Mounting Holding Clamping System Permanent Magnet, Sintered NdFeB Cup Magnets with Cylindrical Hole, Borehole Flat Pot Magnet China Supplier
Part No.: UPYP-B series
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Pot Cylindrical Hole / Through Hole
Material: Housing steel and Magnetic core sintered neodymium ring magnet.
Maximum Operation Temperature: 80 °C
Pot Magnet Size:
see the chart as belows.:

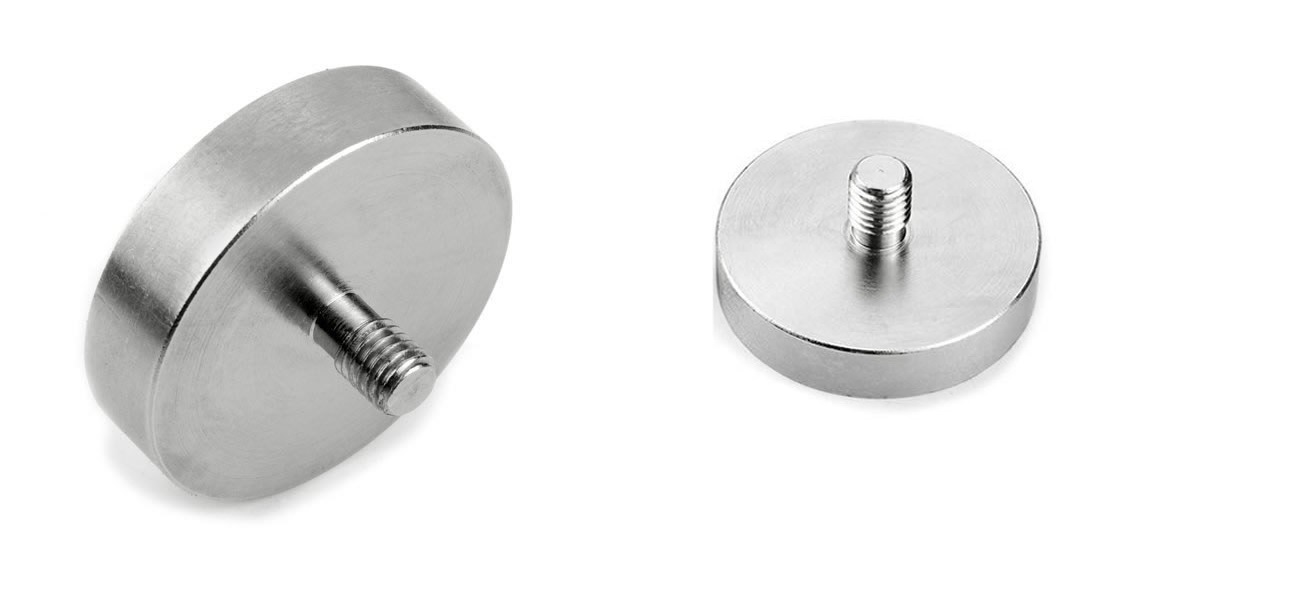

...UPYP-C series...
External Thread NdFeB Magnet, Super Strong Male NdFeB Screw Magnet, External Threaded Boss Pot Magnets, Rare Earth Hanging Mounting Holding Clamping Syste Permanent Magnet, Sintered NdFeB Cup Magnets with External Threaded Stud, Thread Stem Neodymium Magnet China Factory

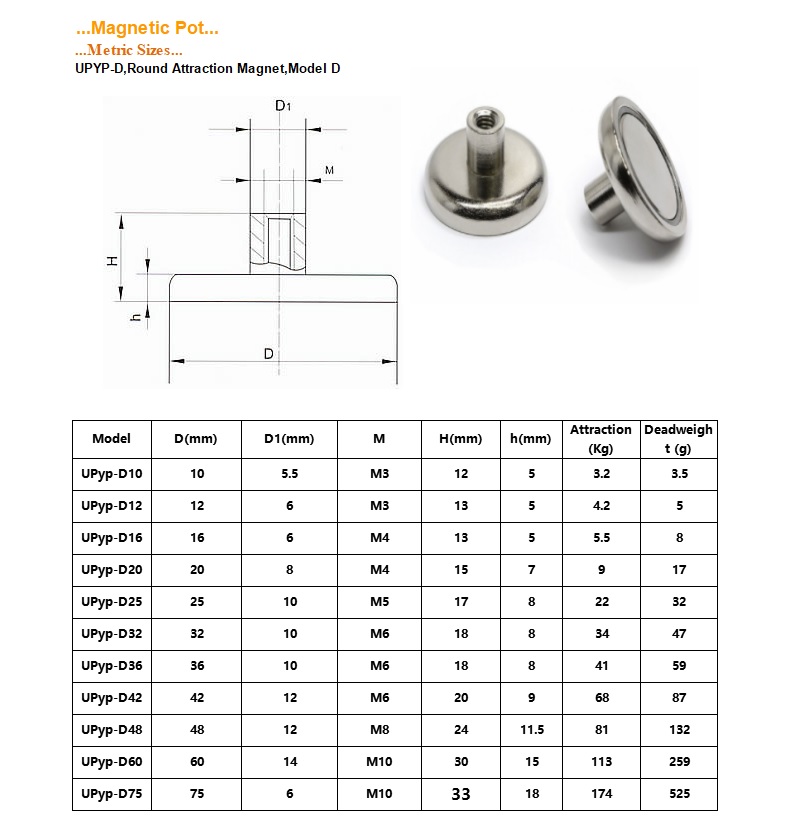

...UPYP-D series...
Sintered Neodymium Pot Magnet Female Stud ,Rare Earth Hanging Mounting Holding Clamping System, Super Strong Female Screw NdFeB Permanent Magnet, Sintered NdFeB Cup Magnets with Interior Threaded Stud, Internal Threaded Bushing Neodymium Magnet China Supplier

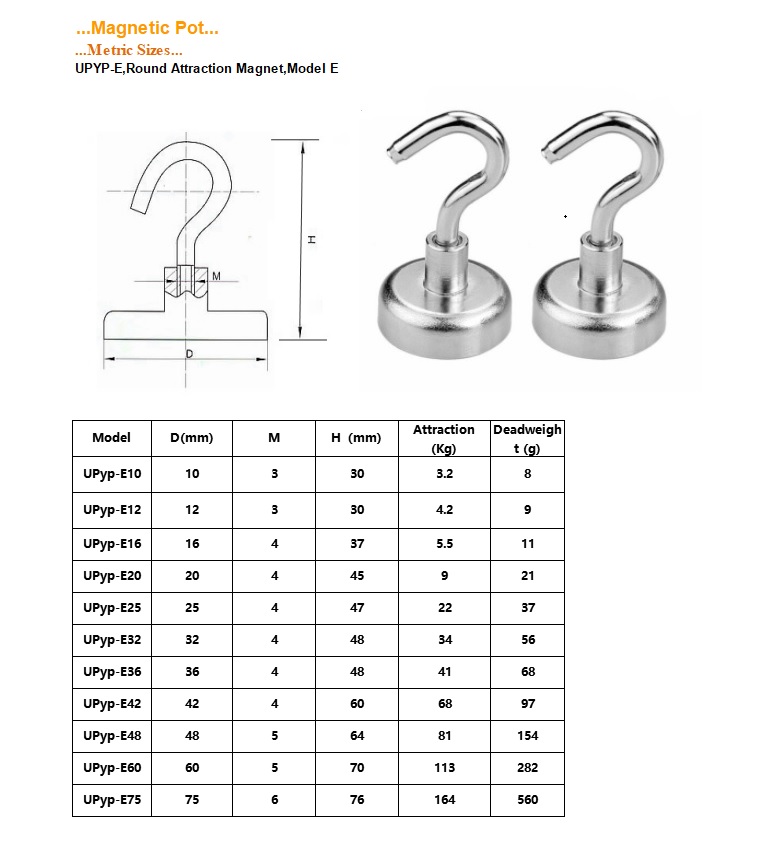

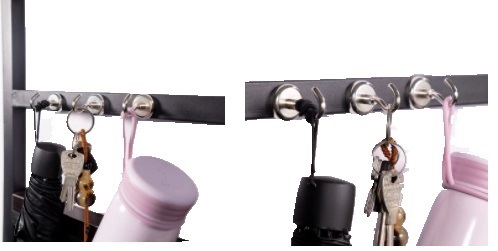

...UPYP-E series...
Neodymium Hanging Magnet , Rare Earth Magnetic Clamping Hook, Super Strong Magnetic Hook, Powerful Sintered NdFeB Hook Magnets, hook permanent magnet, Neodymium Iron Boron Hanging Mounting Holding System, magnetic holder China supplier & manufacturer
Part No.: UPYP-E series
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Hook
Maximum Operation Temperature: 80 °C
Material: Housing steel and Magnetic core sintered neodymium magnet with hook.
Temperature range: max. 80°C.
Principle: The strong neodymium hook magnets are embedded in a steel pot. The steel pot increases the adhesive force of the magnet on direct contact with a thick iron surface. If there is no direct contact with the counterpart, or if the steel plate is thin, painted or rough, you can strain it much less.
Pot Magnet Size:
see the chart as belows.:

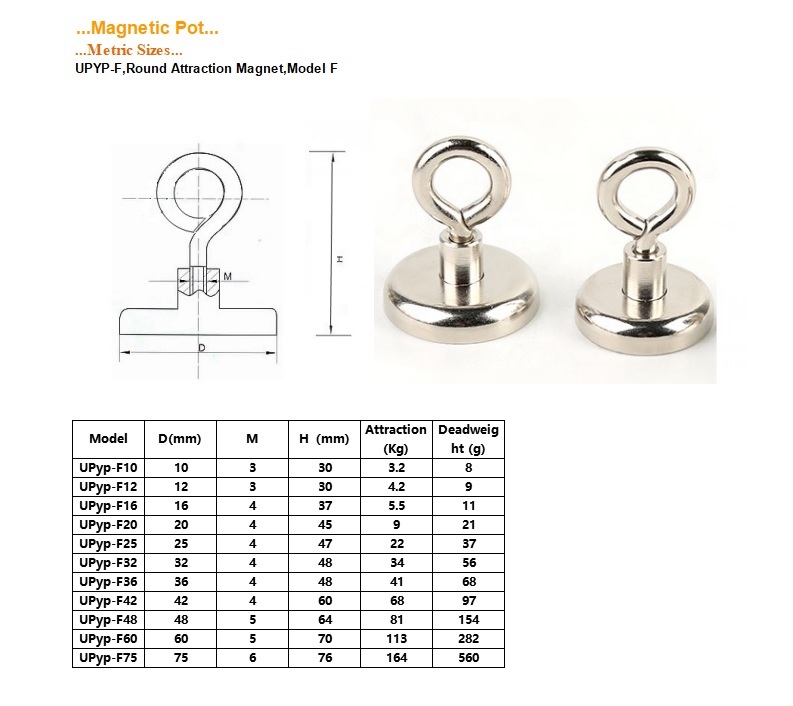

...UPYP-F series...
Neodymium Hanging Magnet , Eyebolt Neodymium Magnets, Rare Earth Magnetic Clamping Hook, Super Strong Magnetic Hook, Powerful Sintered NdFeB Hook Magnets, hook permanent magnet, Neodymium Iron Boron Hanging Mounting Holding System, magnetic holder China supplier & manufacturer
The entirely same as UPYP-E seriesm except for the hook changing to eyebolt...
Pot Magnet Size:
see the chart as belows.:

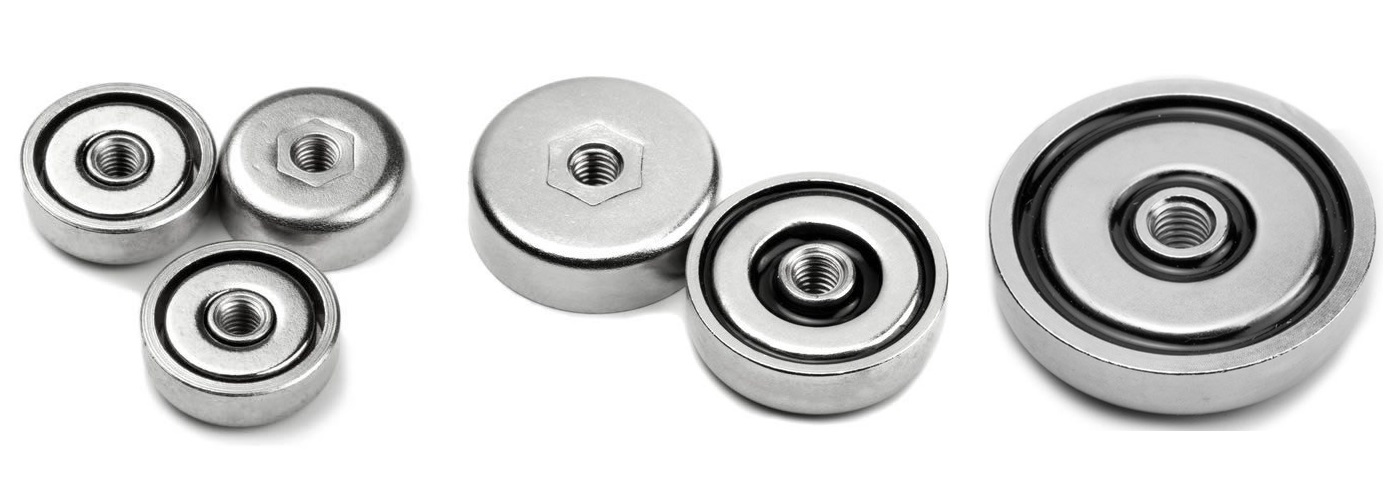

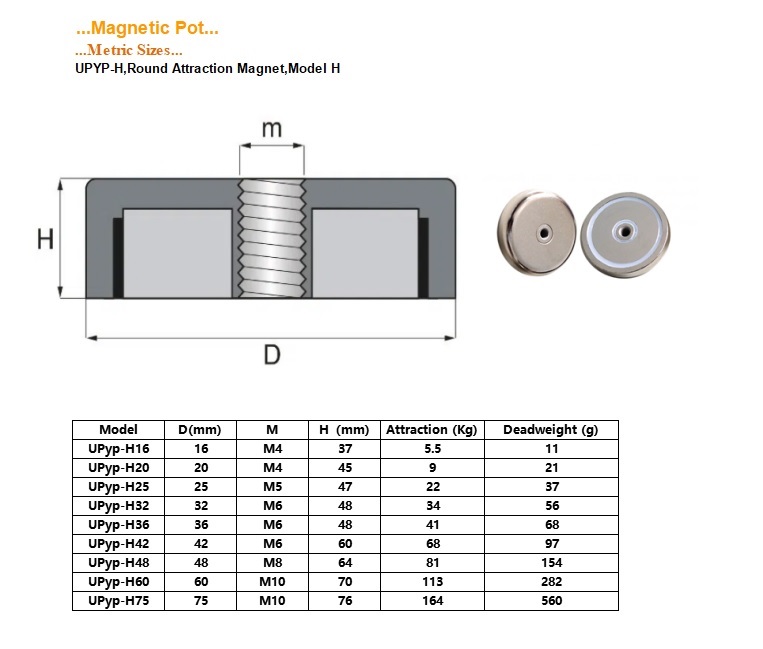

...UPYP-H series...
Neodymium Pot Magnets with Internal Thread / Threaded Hole, Threaded Through Hole NdFeB Pot Magnets, Neodymium Cup Magnets with Internal Thread, Female Thread Neodymium Pot Magnet
Part No.: UPYP-H series
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Hook
Maximum Operation Temperature: 80 °C
Material: Housing steel and Magnetic core sintered neodymium magnet .Plastic ring between housing steel and magnet, black epoxy is also available.
Temperature range: max. 80°C.
Principle: The strong neodymium hook magnets are embedded in a steel pot. The steel pot increases the adhesive force of the magnet on direct contact with a thick iron surface. If there is no direct contact with the counterpart, or if the steel plate is thin, painted or rough, you can strain it much less.
Pot Magnet Size:
see the chart as belows.:
Sealing with black expoxy:

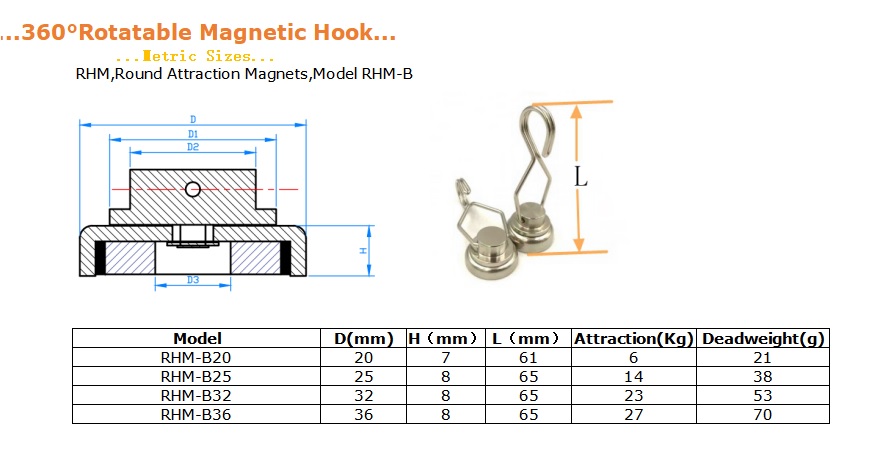

..RHM-B series...

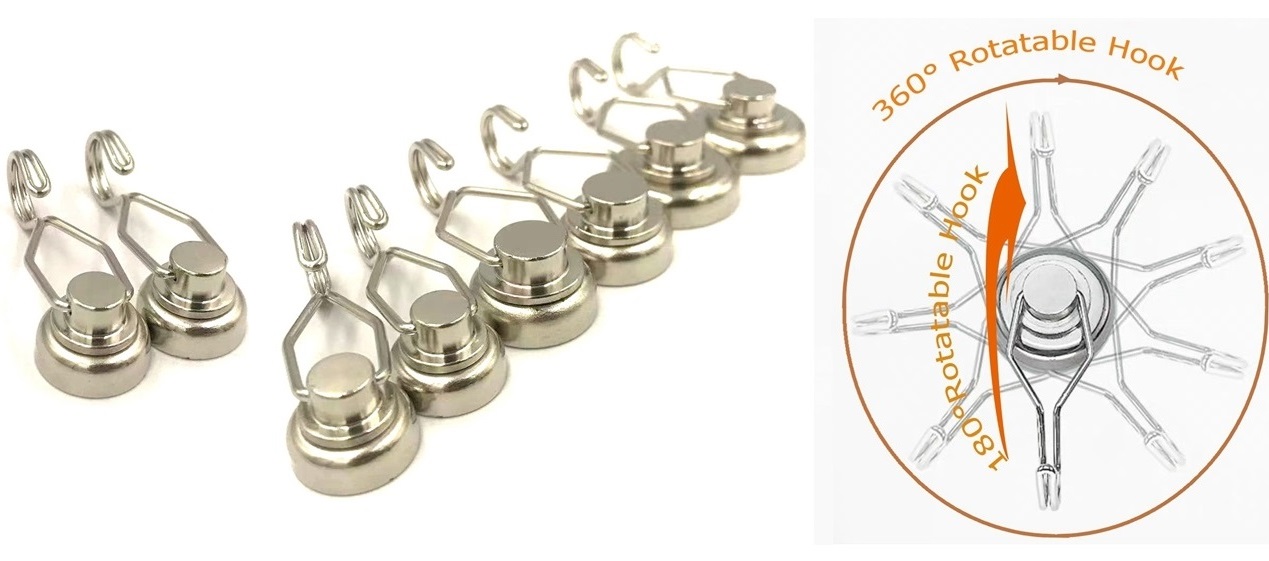

Neodymium Pot Magnets with 360 rotatable hook, Threaded Through Hole NdFeB Pot Magnets, Neodymium Cup Magnets with Internal Thread, Female Thread Neodymium Pot Magnet
Part No.: RHM-B series
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Hook
Maximum Operation Temperature: 80 °C
Material: Housing steel and Magnetic core sintered neodymium magnet .Plastic ring between housing steel and magnet.
Temperature range: max. 80°C.
Principle: The strong neodymium hook magnets are embedded in a steel pot. The steel pot increases the adhesive force of the magnet on direct contact with a thick iron surface. If there is no direct contact with the counterpart, or if the steel plate is thin, painted or rough, you can strain it much less.
Pot Magnet Size:
see the chart as belows.:

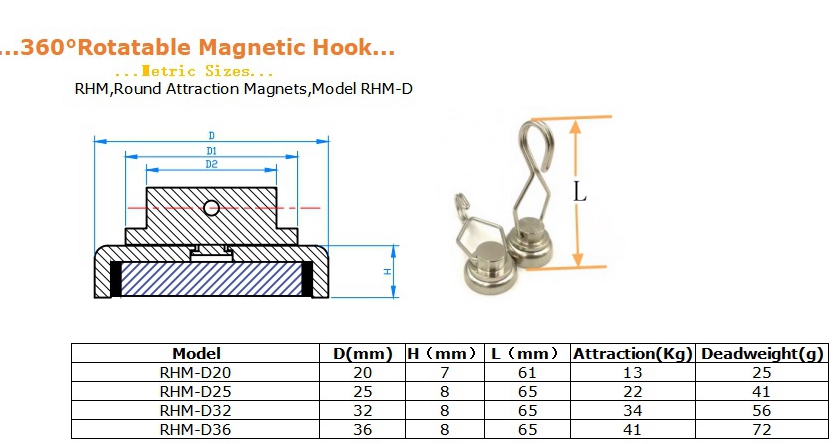

..RHM-D series...
Neodymium Pot Magnets with 360 rotatable hook, Threaded Through Hole NdFeB Pot Magnets, Neodymium Cup Magnets with Internal Thread, Female Thread Neodymium Pot Magnet
Part No.: RHM-D series
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Hook
Maximum Operation Temperature: 80 °C
Material: Housing steel and Magnetic core sintered neodymium magnet .Plastic ring between housing steel and magnet.
Temperature range: max. 80°C.
Principle: The strong neodymium hook magnets are embedded in a steel pot. The steel pot increases the adhesive force of the magnet on direct contact with a thick iron surface. If there is no direct contact with the counterpart, or if the steel plate is thin, painted or rough, you can strain it much less.
Pot Magnet Size:
see the chart as belows.:

Cup/Pot Magnets by turning Process :
...More Application...
The UPyp-C Series can match with UPyp-D Series to make up Search Magnets.

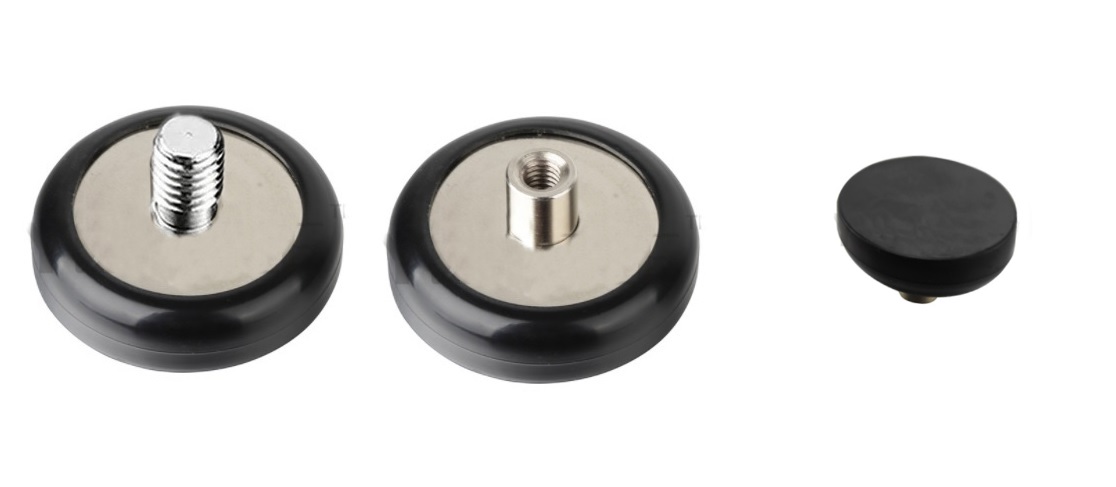

The UPyp-C Series & UPyp-D Series are coated with Rubber (if need):
The rubber coating will decrease the pull force slightly, but it can protect the magnet from scratching.
