Neodymium Arc segment Magnets

Segment Magnets
Segment Magnets, Rare Earth Neodymium arc magnets, NdFe Segments, Arc & Tile Neo Permanent Magnet , Magnetic Segments

UPMAG offers neodymium magnets in arc and segment shaped. These neodymium iron boron magnets are widely used for motor, rotor and industrial applications. the used material grade N30SH,N42SH, N45SH, N52, N35UH,N30EH…

As usual, we call them magnetic segments, arc neodymium magnets, magnet arc or neodymium tile magnets, these are widely used in the system of high grade Motor or Generator’s magnetic rotor, but they are easily damaged which will stick to the surface between magnet and yoke, and increase the gap distance. Thus, a pole shoe made of the same or similar magnetic material is needed with the yoke.
Motor Magnets: Magnets and assemblies from our company can be found in many types of motors, generators, and actuators.

Segment Magnets – Magnetic technology for the motor / VCM market delivers the ability to push the limits on miniaturization, efficiency and performance. our customers wish to achieve extreme performance in devices such as a wire bonding machines and missile guidance systems. Our customers challenge us to design motors and actuators with features such as:
High force to mass ratio
High speed moving coil designs
Harsh environment withstand capability

The types of motor using permanent magnet such as :
DC motor magnets
Brushless motor magnets
Servo motor magnets
Stepper motor magnets
Linear motor magnets
PM motor magnets
Irregular motor magnets
Automobile motor magnets /Car motor magnets
High performance actuator and motor design requires the use of materials that push the limits of material science. Magnet material selection is critical and we can assist in the selection of the best material. Tradeoffs in the selection include temperature, residual induction, coercivity and environment.

Follow us to choose the right magnets you want :

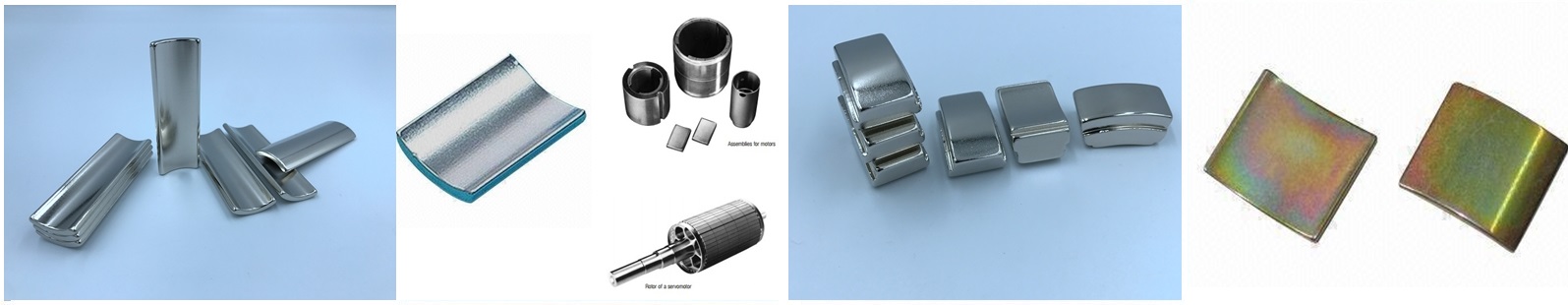

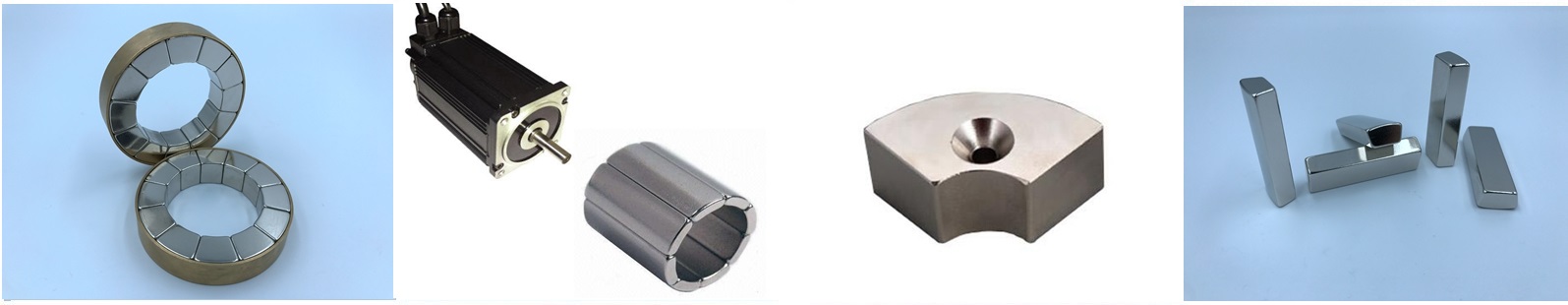

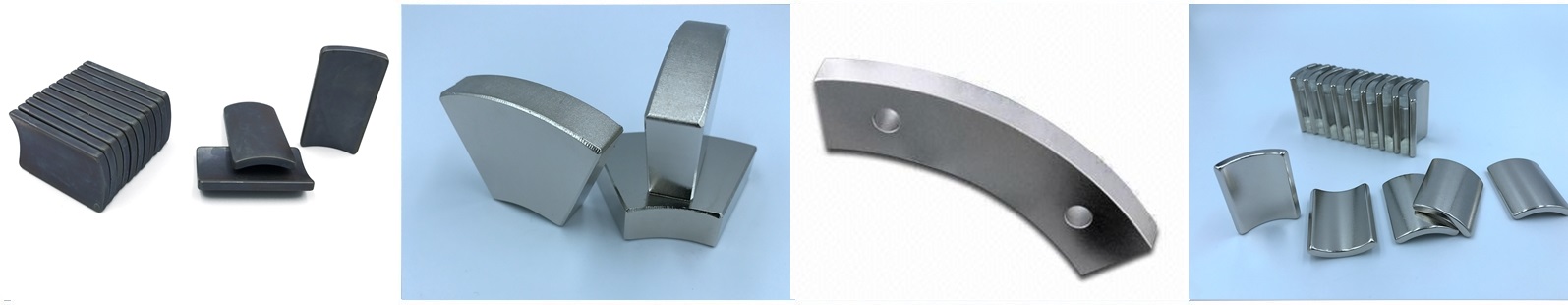

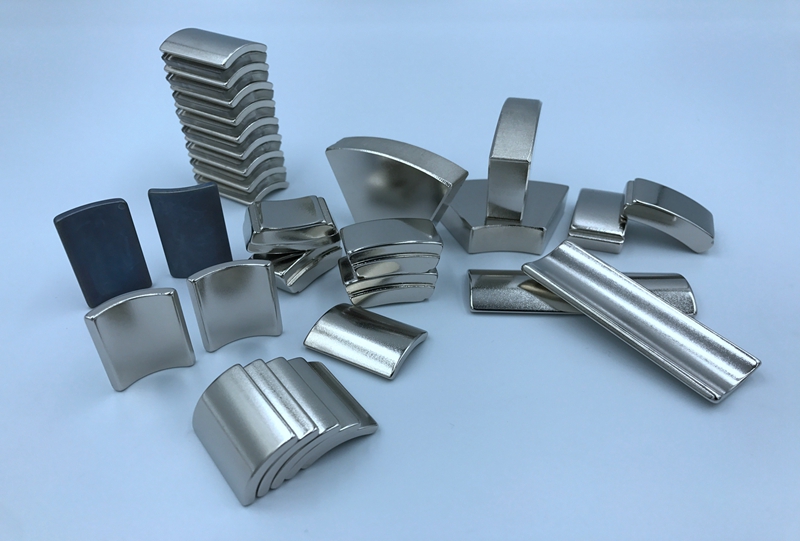

Neodymium Arc Segment Magnets:

Q1:How long will it take to receive your price quotation?
A1:Usually it takes 1- 2working days.

Q2:What is your lead-time after I place a purchase order?
A2:Usually take 2-3 weeks. If it is needed to make a mould, it may take a little longer.
Q3:How is the price ?
A3:As we believe the quality is the most important,we will provide the high quality magnet with reasonableprice.
Q4:Could I get samples ?
A4:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q5:What information do I need to supply when I have an inquiry ?
A5;If you have any inquiry,please kindly advise the following items:
Dimensions or drawing with tolerances.
Material grade or magnetic properties.
Magnetic direction
Surface coating(if necessary)
Quantity and delivery terms
Q6:What is normal dimension of your products ?
A6:Our factory have a huge magnets stock list,we will share with you if necessary,all magnets arecustomized as different clients' different use.
